Calculation of slab reinforcement steel quantity with simple excel sheet this simple excel sheet will help you in calculation of quantity of reinforcement steel required for slabs, just put the basic details as shown in above figure, it will calculate the steel quantity and show you in a table which you can print and file it for record. Only use the total values from the quantity summary tables to develop the cost estimate. Many other elements may be present or added. First you have to know the quantity of steel you are using suppose if you are casting 100m^3 slab with a steel of 15 tons. For n isolated reinforcement bars the total weight is:
Ep1688512a1 Lead Free Steel For Machine Structural Use With Excellent Machinability And Low Strenght Anisotropy Google Patents from patentimages.storage.googleapis.com Deduct the steel volume from the concrete… as 1 m^3= 7850kg. Show all items described in the plans that will be included in the cost estimate. You can download it but before this, i recommend you to watch the video till the end. I have given steel calculation formula in excel sheet in the link below. Total steel quantity for distribution reinforcement, wd=(12x12x25.928)/162. Quantity material cost / each total material cost labor cost / each total labor cost equip. Bbs helps to estimate the total quantity of steel required for the construction of building or structure. In this calculation the density of reinforcement steel is assumed equal to ρ = 7850 kg/m.
Total steel quantity for distribution reinforcement, wd=(12x12x25.928)/162.
Calculation of slab reinforcement steel quantity with simple excel sheet this simple excel sheet will help you in calculation of quantity of reinforcement steel required for slabs, just put the basic details as shown in above figure, it will calculate the steel quantity and show you in a table which you can print and file it for record. The bars we use in the tension zone of the slab is called bent up bars. Following are the steps to calculate the quantity of steel for rcc slab. For b oth one way and two way slab with an example. Deduct the steel volume from the concrete… as 1 m^3= 7850kg. In this post, we are going to explain how to calculate steel quantity for the slab? In this calculation the density of reinforcement steel is assumed equal to ρ = 7850 kg/m. First of all in steel quantity calculation, we need to calculate the length of steel bar used according to diameter and yield strength etc., the weight of steel bar per metre length (w)= (d^2)/162 (in kgs) where d= diameter of the bar in mm quantity of steel = (w) * total length of steel bar used (l) The unit weight of steel γ is specified between 77.0 kn/m 3 and 78.5 kn/m 3. Based on that if you are using 15 tons steel then you have to deduct 2m^3 of concrete volume. Materials requires for reinforced concrete are cement, sand, coarse aggregate and steel.let us assume a standard quantity of 1m 3 cement mortar and a mix proportion of 1:1.5:3 (1 part cement, 1.5 parts sand & 3 parts ca). Bar bending schedule & quantity estimation of reinforcement steel. Advanced bill of material 24 2.
Calculate the quantity and total cost of merchandise inventory purchased sold and. Based on that if you are using 15 tons steel then you have to deduct 2m^3 of concrete volume. It helps to quote for tender the cost incurred by steel. Descriptiontrinity's high quality all stainless steel table is great for your indoor, outdoor, kitchen, or garage needs. Technically in the slab, we give two different names of these bars (main and distribution bar).
How To Calculate Slab Steel Quantity From Drawing Bbs Of Slab from cdn.civiljungle.com For better view, please read this post in landscape mode if you are on the mobile device. Designed with rounded edges and corners for safety, and an easy, no tool assembly you can have the table set up in 10 minutes or less! You can download it but before this, i recommend you to watch the video till the end. The designer will be responsible for inserting these values into either ces or We are metal experts and have been providing quality customer service and products since 1985. Compute total length of longitudinal bars which equal to the column height plus laps for footing multiply number of longitudinal bars. Wtot = n ⋅ ρ ⋅ as Bar length deduction as per british code :
Then, compute quantity of steel in the column using the following steps:

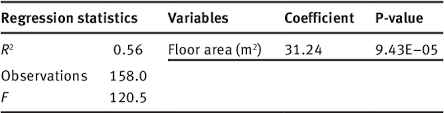

Designed with rounded edges and corners for safety, and an easy, no tool assembly you can have the table set up in 10 minutes or less! Cost total cost 10 x 6 x 3/8 51 4 645 2580 47 188 31.5 126 10 x 6 x 3/4 9 1 645 645 47 47 31.5 31.5 c34 8 x 8 x 5/16 30 8 645 5160 47 376 31.5 252 $5,788.00. Steel is an alloy made up of iron with typically a few tenths of a percent of carbon to improve its strength and fracture resistance compared to iron. Secondary member design 17 3. Like i have listed the bar bending details in a table and calculations are done separately. Galvanized steel legs and undershelf. Please specify a value for this option. Prepare a bar bending schedule in order to classify different shapes of bars (bent up bar, straight anchor bar, eos bar, curtail bar etc) and diameters. For better view, please read this post in landscape mode if you are on the mobile device. Bbs helps to estimate the total quantity of steel required for the construction of building or structure. List down all the shapes of bars from the drawing. The designer will be responsible for inserting these values into either ces or Use of bar bending schedule:
